Video & Audio

• Image Sensor: 1/2.7″ CMOS sensor
• Video Resolution:  2304×1296 (3.0 megapixels) @ 20 fps
• Lens: f = 2.8 – 8 mm, F = 1.6, with IR-cut
• Zoom: 3x optical
• Video Format: H.264
• Field of View: Horizontal: 48° – 90°; Vertical: 37° – 68°

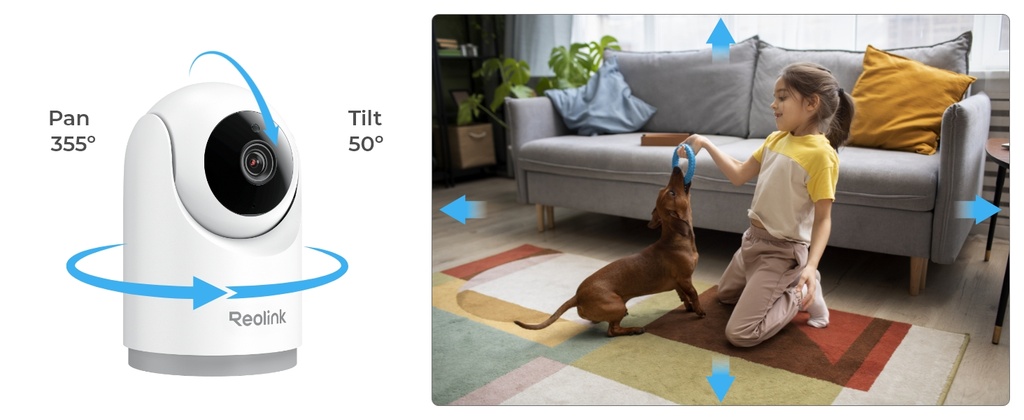

• Pan & Tilt Angle: Pan: 355°; Tilt: 50°
• Day & Night: IR-cut filter with auto-switching
• Infrared Night Vision: Up to 12 meters (40 ft); 12 pcs 850 nm IR LEDs
• Color Night Vision: Spotlights: 4 pcs, 2.7 W, 6500 K
• Audio: Two-way audio

Power & Interface

• Power: DC 12.0 V⎓1 A, < 12 W
• Power Port: DC port
• Reset Button: Yes
• Ethernet: 1 × 10M/100 Mbps RJ45
• Storage: microSD card slot (Max.512GB)
• Audio: Built-in microphone and speaker

Software Features

• Frame Rate : Mainstream: 2 fps – 25 fps (default: 20 fps) / Substream: 4 fps – 15 fps (default: 10 fps)
• Code Rate: Mainstream: 1024 Kbps – 8192 Kbps (default: 4096 Kbps) / Substream: 64 Kbps – 512 Kbps (default: 256 Kbps)
• Compatible Browsers: Edge, Chrome, Firefox, Safari
• OS Supported: Windows, Mac OS, iOS, Android
• Smart Alarm: Motion detection, person detection, vehicle detection
• Recording Modes: Motion recording (default), scheduled, 24/7 recording
• Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
• Max User Access: 20 users (1 admin + 19 users); 12 simultaneous video streams (10 sub, 2 main)

Working Environment

• Operating Temperature: -10 °C to +55 °C
• Operating Humidity: 20% to 85%
• Weatherproof Rating: IP65
